RFQ Checklist
- CNC controller type and communication requirements
- Part size, fixture mass, and expected cutting loads
- Positioning accuracy and cycle-time target
- Installation envelope and mounting surface constraints
← Back to Products
CNC 4th Axis Rotary Tables
CNC-oriented rotary tables built for 4th-axis indexing and positioning workflows in precision metal and composite machining.
Target Buyer:Best fit for CNC equipment integrators and machine shops standardizing rotary-axis capability.
Capability Highlights
- Designed for CNC integration with stable indexing performance
- Supports fixture-heavy loads and machining reaction forces
- Practical pathway to 4th-axis productivity upgrades
Typical Applications
- 4th-axis milling and drilling setups
- Batch precision part machining
- Upgrade projects for legacy machining cells
Engineering Focus
- Validate torque and rigidity against cutting-force profile
- Confirm controller and post-processing compatibility
- Define fixture repeatability and clamping strategy
Key Evaluation Matrix
| Metric | Typical Range | Why It Matters |
|---|---|---|
| Indexing Stability Under Load | Cutting-force and fixture dependent | Protects dimensional consistency during multi-face machining. |
| Repeatability Across Cycles | Validated by application scenario | Reduces scrap and downstream rework in batch production. |
| Integration Lead Time | Depends on interface readiness | Affects ramp speed and ROI realization for upgrades. |
Risk Controls
- Controller mismatch during integration: Confirm CNC I/O, command structure, and commissioning scope before PO.
- Fixture-induced runout errors: Validate clamping method and reference datum strategy in pilot phase.
Decision Workflow From First RFQ to Release
Treat this page as a working template for engineering and procurement alignment, not a brochure. The goal is to convert CNC 4th Axis Rotary Tables requirements into measurable acceptance rules before model selection and sourcing release.
- Baseline lock: confirm CNC controller type and communication requirements and Part size, fixture mass, and expected cutting loads.
- Fit validation: verify Indexing Stability Under Load and Repeatability Across Cycles under real payload and cycle conditions.
- Risk clearance: close controls for Controller mismatch during integration and Fixture-induced runout errors.
- Release package: attach the evidence table below to your internal review so quote comparison is based on the same criteria.
Minimum Evidence Pack for Buyer Review
Use this pack to compare suppliers on equivalent inputs. It prevents quote loops caused by hidden assumption differences.
| Artifact | Minimum Content | Acceptance Signal |
|---|---|---|
| Product RFQ sheet | CNC controller type and communication requirements | No unresolved assumptions in supplier clarification round. |
| Validation matrix | Metric targets for Indexing Stability Under Load and Repeatability Across Cycles. | Pass/fail thresholds are numeric and test-method linked. |
| Risk closure log | Preventive actions for Controller mismatch during integration. | Owner, due date, and verification evidence are assigned. |
Non-Fit Triggers Before PO
- Stop release if requirement ownership is unclear across supplier, controls engineer, and procurement approver.
- Delay commitment if Indexing Stability Under Load is quoted without a reproducible validation method.
- Hold PO when critical risks (for example, Controller mismatch during integration) are still tracked as open items.

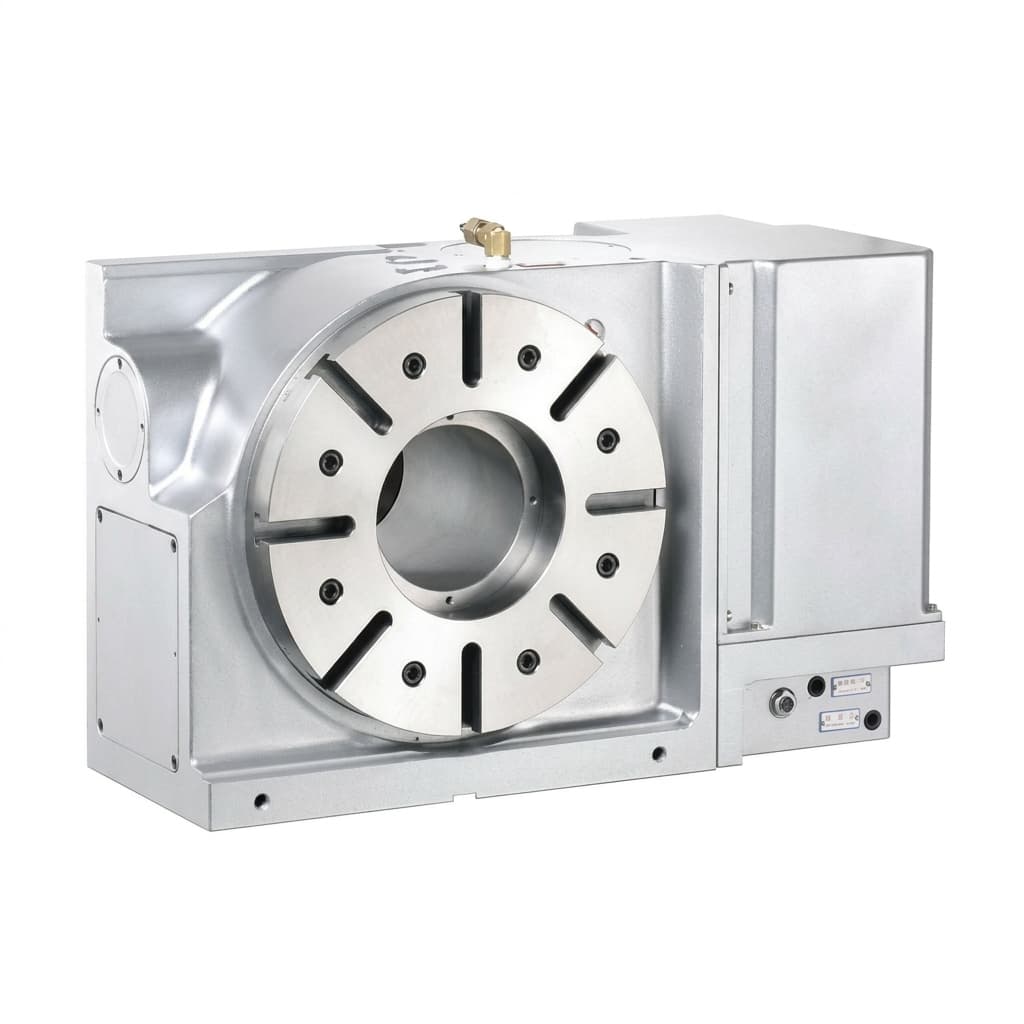

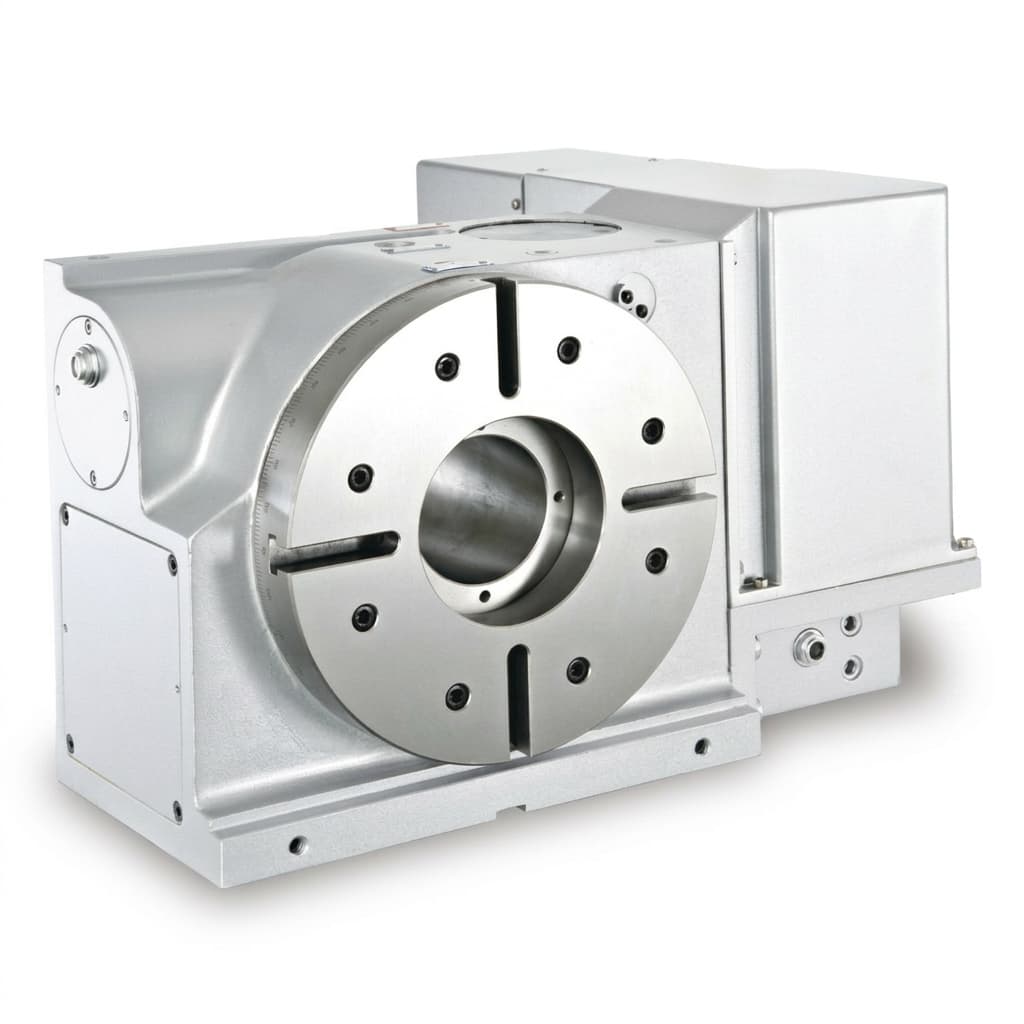

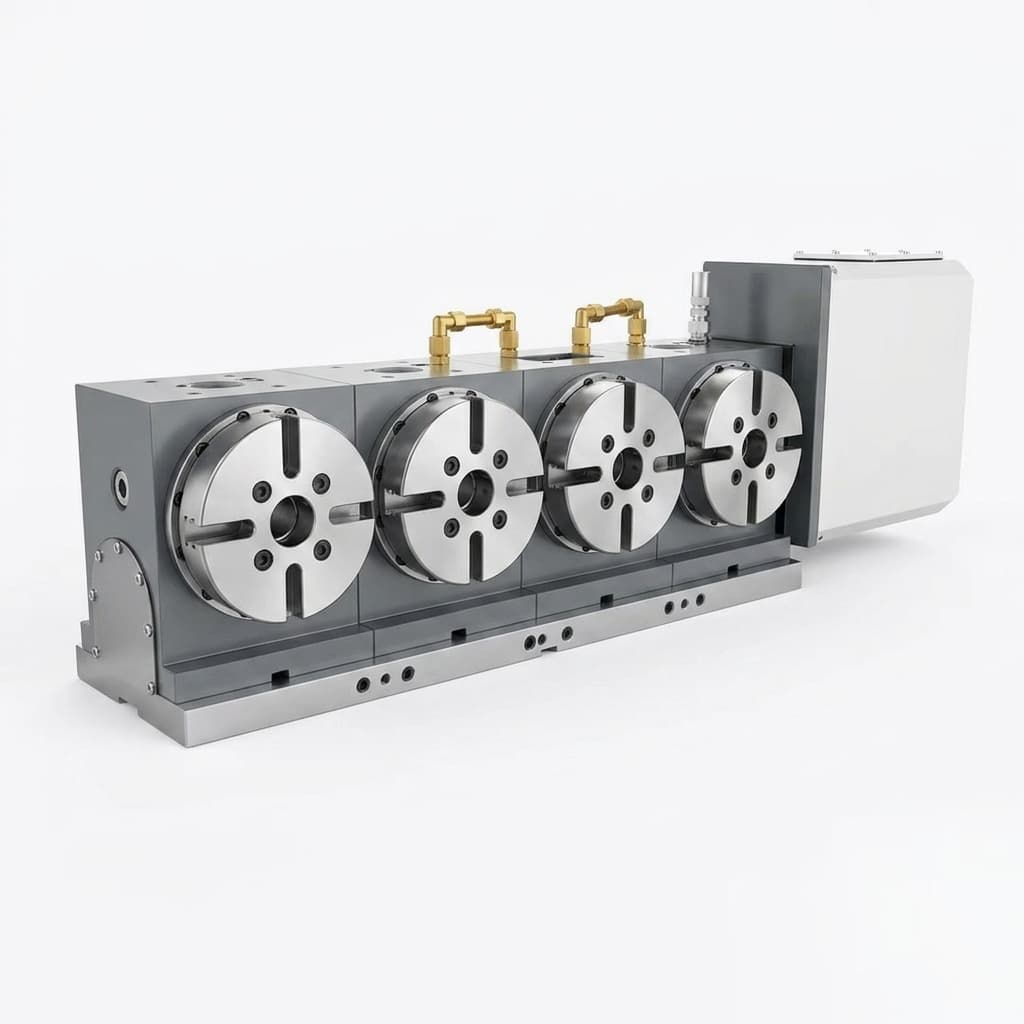

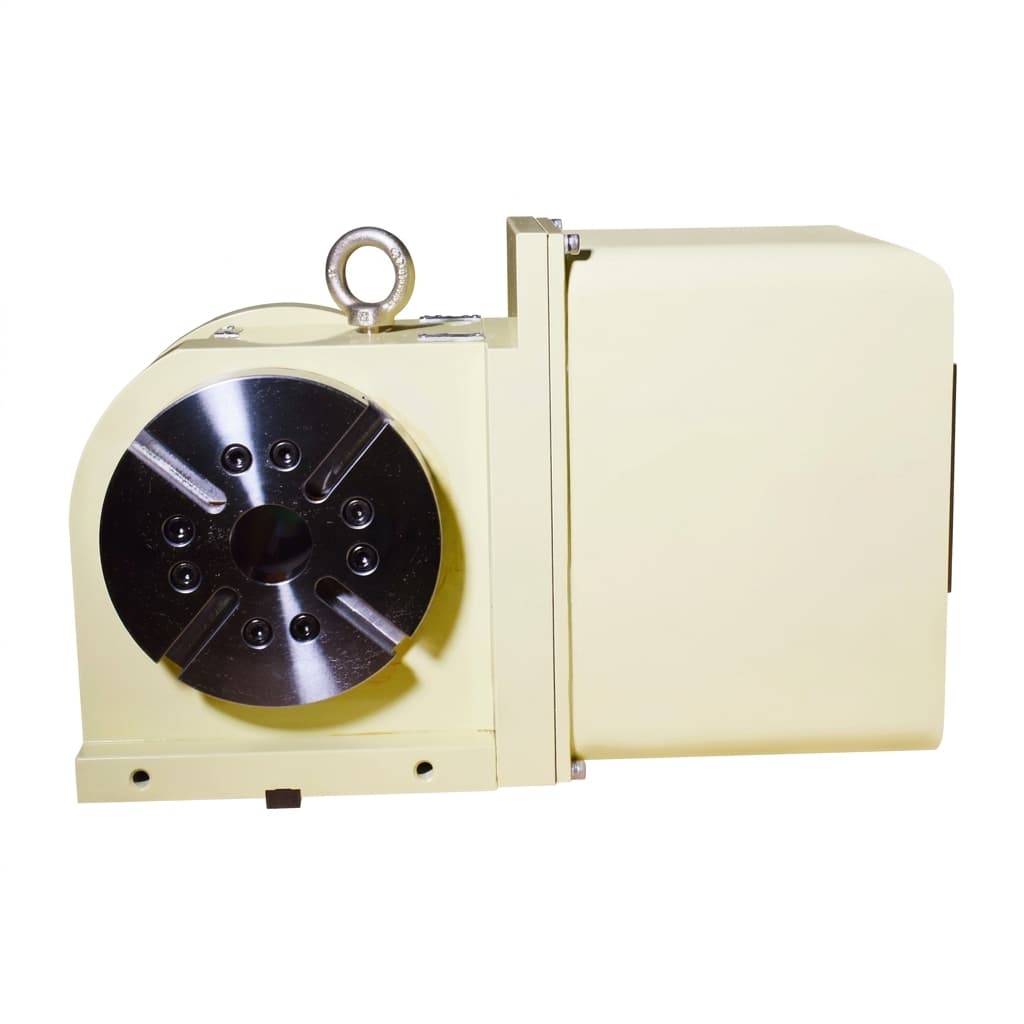

Product Gallery
Buyer FAQ
Can the rotary table be tuned for our specific CNC workflow?
Yes. Integration details can be matched to controller, fixture, and process requirements.
Is this only for new machines or also retrofit?
Both. We support new builds and retrofit programs with existing machine constraints.
